The cabin unit is used to send the air processed by the air conditioning system into the room from the duct to provide a comfortable environment for the room. It is mainly used in living cabins, restaurants, offices, conference rooms, etc., and can also be used as terminal equipment of air conditioning systems in hotels, hospitals, and conference halls.

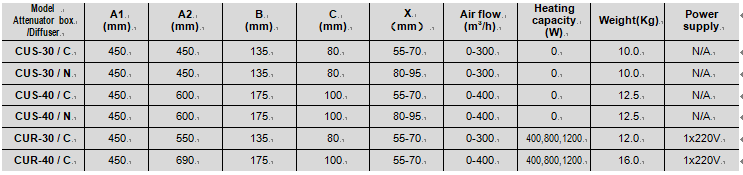

According to their uses, the cabin units can be divided into three main categories: Cabin Units CUS is used for single duct system, CUR type is used for reheating system, and CUT type is used for Twin duct system.

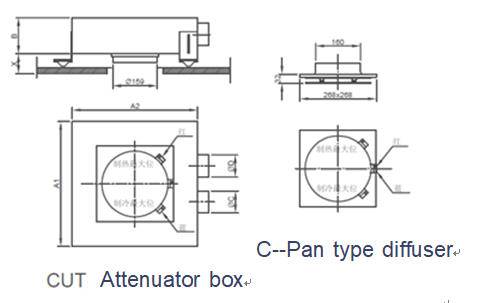

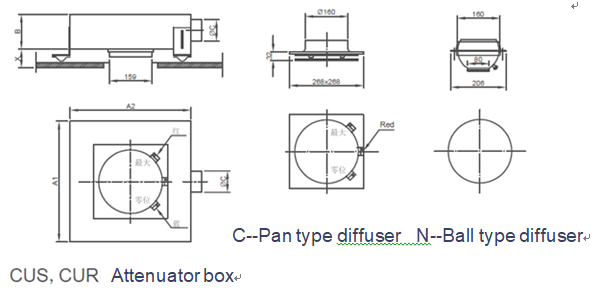

Attenuator box

It is made of aluminum zinc steel or antimagnetic aluminum plate, with fireproof rock wool as heat insulation and sound absorption material.

Adjustment mechanism

There are two functions of primary air volume limit and secondary air volume adjustment: the primary air volume limit can balance the air volume of the air distributor, and the secondary air volume adjustment knob allows the user to manually adjust the air volume.

Diffuser

The diffuser of the pan-type cabin unit is formed by pressing steel plate.

The air outlet of the ball-type cabin unit is made of stainless steel, and the air outlet is equipped with an adjusting damper, which can adjust the air volume arbitrarily.

Features

The structure is compact and can be easily installed on the ceiling.

Disc type and ball type air outlets are available.

Single-tube and double-tube types are available.

An electric heater with control can be installed.

?Feature: compact structure, small volume, light weight and low noise

?Air Flow: 0~ 400 m3/h

?Composition: plenum box, air flow regulation device and air diffuser

?Plenum box: made of  alu-zinc steel sheet, internal laid with sound & thermal insulation material

?Regulation device: with primary flow balance and second flow regulation function

?Air diffuser： pan structure, surface is powder coated and appearance is beautiful. Stainless steel ball nozzle is alternative.

material

Static pressure box: aluminum-zinc plate, anti-magnetic aluminum alloy, stainless steel optional.

Pan type diffuser: powder coated steel plate；

Ball type diffuser: stainless steel.
